●主要液壓部件全部進口!        The main hydraulic components are all imported!
●每天工作量少省5個人工。Save 5 labours at least every day
●不用攪拌機每天省電100度!  Don't need electric concrete mixer, save electricity up to 100 degrees every day
●不用混凝土運輸車!               Don't need concrete mixer truck anymore 常規參數Conventional parameters

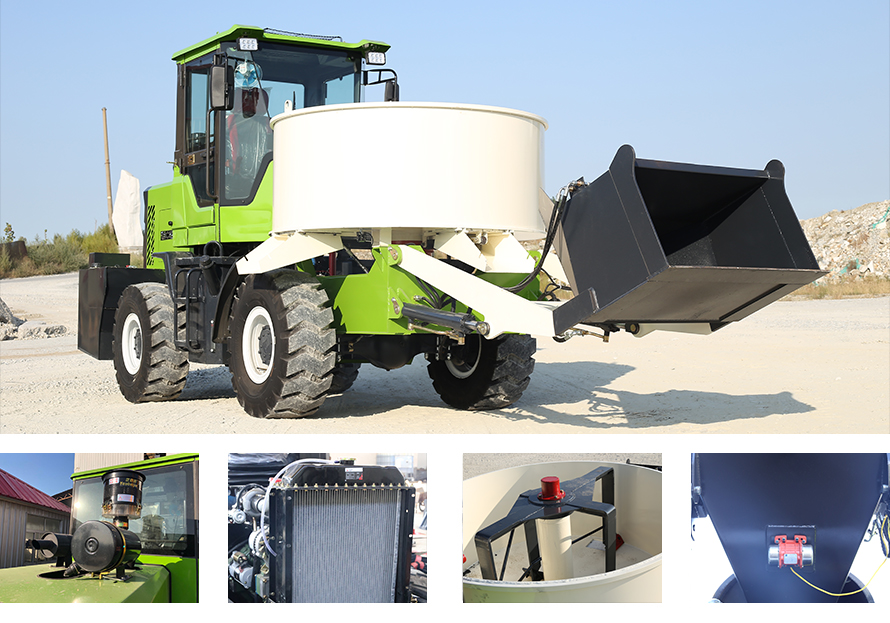

設備型號:JBC-1200
Equipment Model : JBC-1200
維護加注量Service Refill Capacities
燃油箱:60升
液壓系統總容量:60升
機油:16升
Fuel Tank : 60 liters
Total Hydraulic System Capacity : 60 liters
Oil : 16 liters
液壓系統參數Parameters of Hydraulic System
泵:CBFC 32/50        Dual Gear Pump : CBFC 32 / 50
馬達:BM5-160          Hydraulic Motor : BM5-160
供水系統參數Water Supply System Parameters
水箱容積:550L
供水方式:時間繼電器
Tank Volume : 550L
Water Supply : Time Relay
攪拌和卸載Mixing and Unloading
滾筒幾何容量:....................1200L      滾筒旋轉速度:....................8-20轉/分鐘      混凝土產量:....................1.2立方米/罐
“滾筒旋轉通過齒輪泵和開路中的擺線液壓馬達實現,在操作室內和攪拌機后部擁有手動電氣閥。滾筒通過2個雙作用千斤頂升水平位置。卸載溜槽通過1個手動可調式手柄控制傾斜,可以90°旋轉,但是不能和攪拌滾筒的傾斜操作同步進行?？刹鹦读锊劭梢员ＷC直接通過料斗卸載。作為標準配置提供2個溜槽延長部件。
?Mixing Drum Geometrical Capacity:....................1200L Drum Rotation Speed:....................8-20rpm Concrete Yield:....................1.2 m3 / Batch
The drum rotation is achieved by gear pump and cycloidal hydraulic motor in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum risesto horizontal position through two double- -acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 ", but can not be synchronized withthe tilting operation of mixing drum. Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard.
